Water Warriors Renegade Internals
Tech - Water Warriors Renegade Internals .:
Images from iSoaker.com

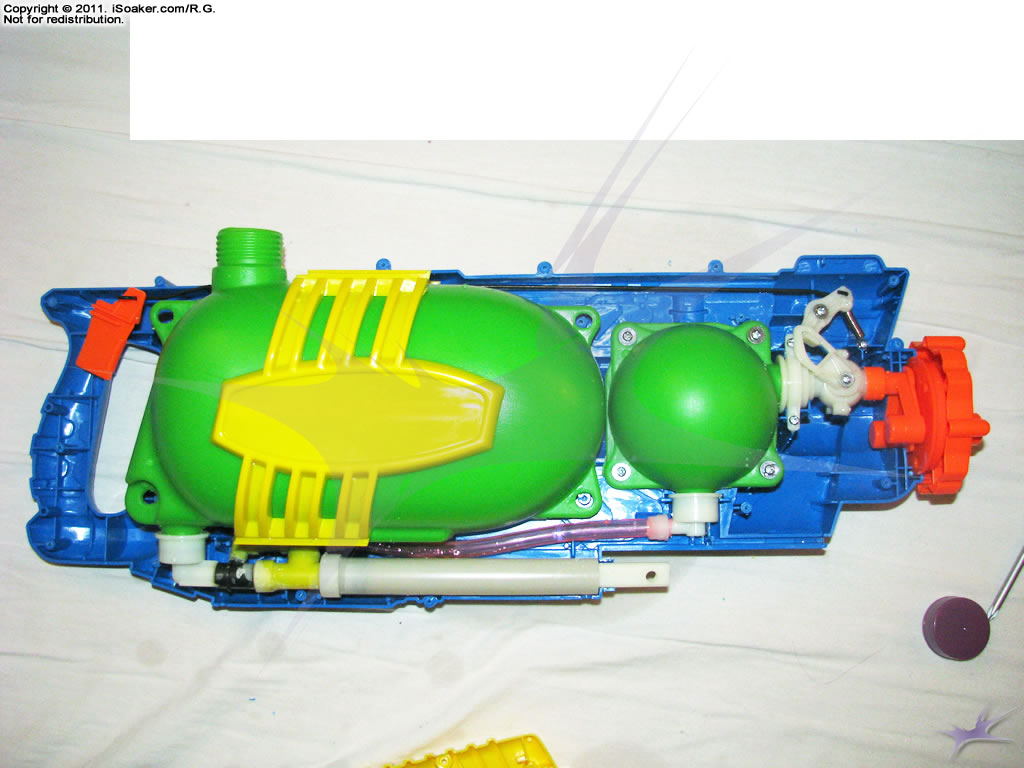

Side casing of Water Warriors Renegade removed showing full internals

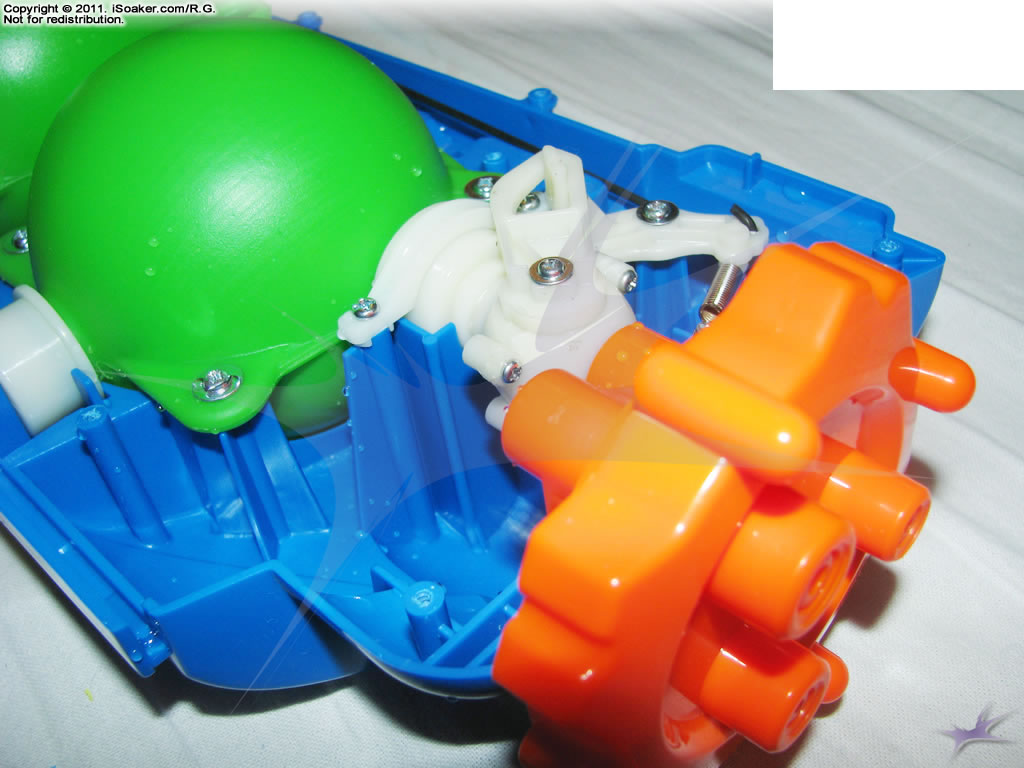

Nozzle selector and nozzle valve with PC in the background

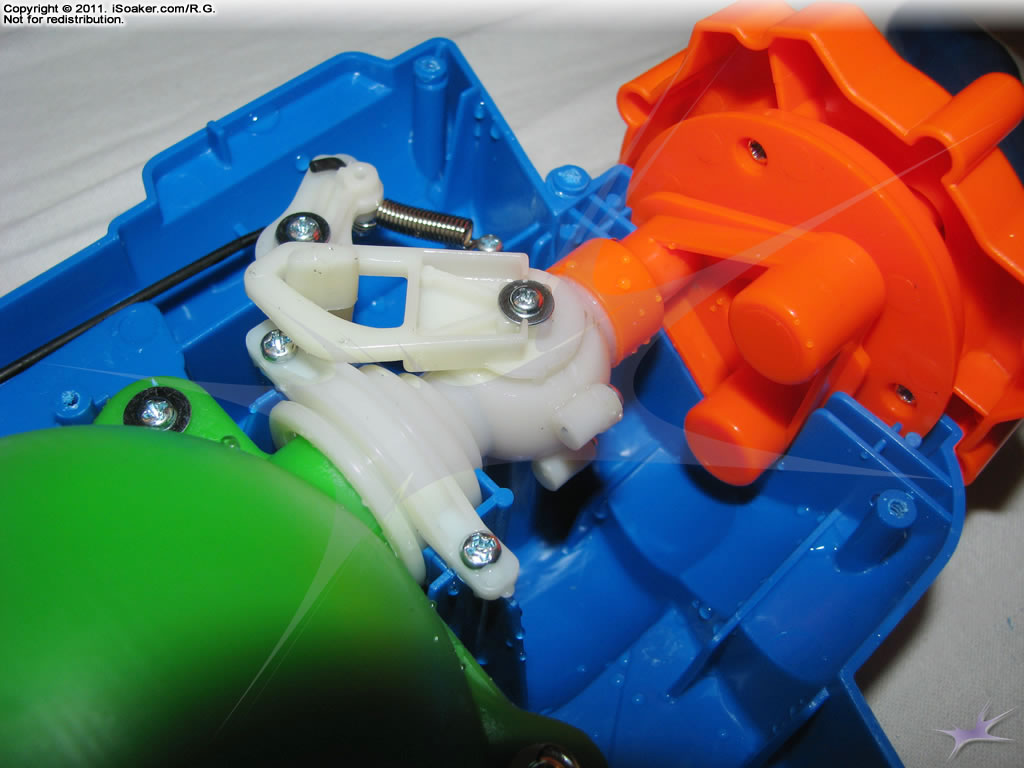

Nozzle selector and nozzle valve with PC in the foreground

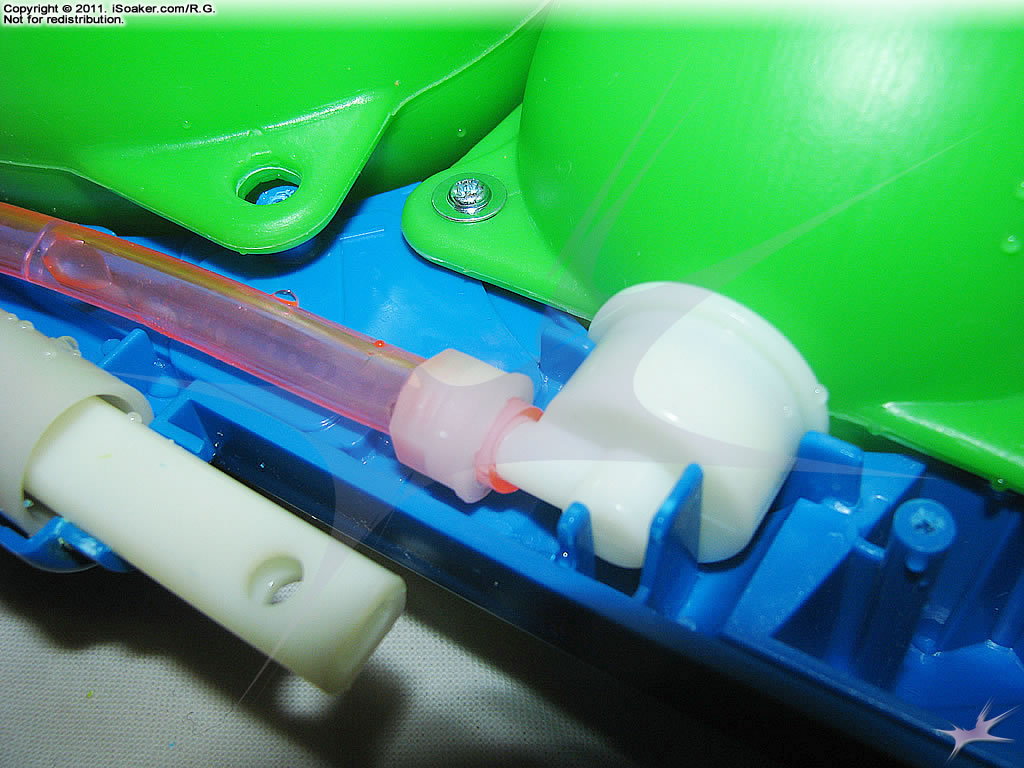

Reservoir intake to pump assembly with check valves.

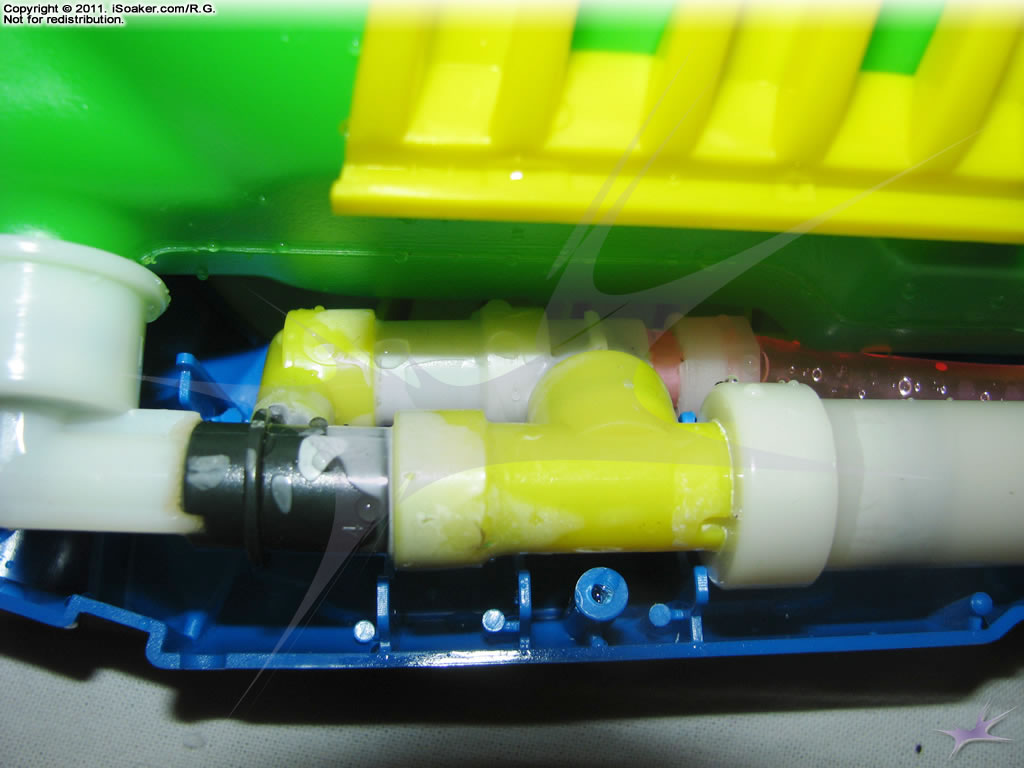

Another angle of reservoir intake to pump assembly with check valves.

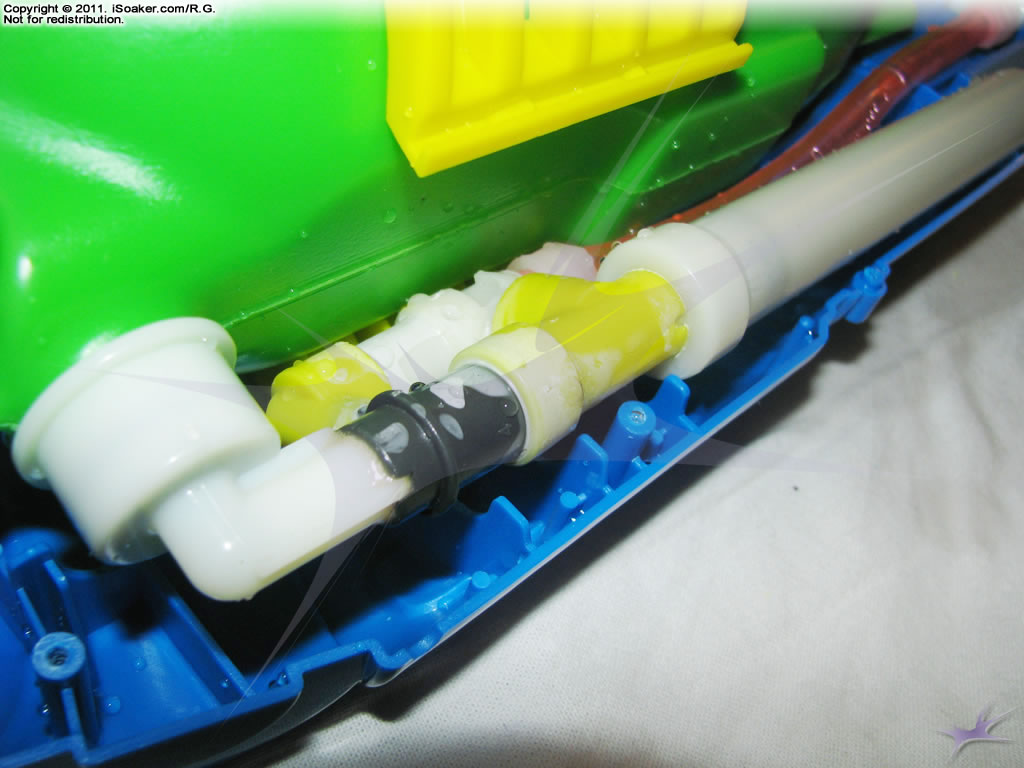

Base of PC. Pump rod at the lower-left of the image.

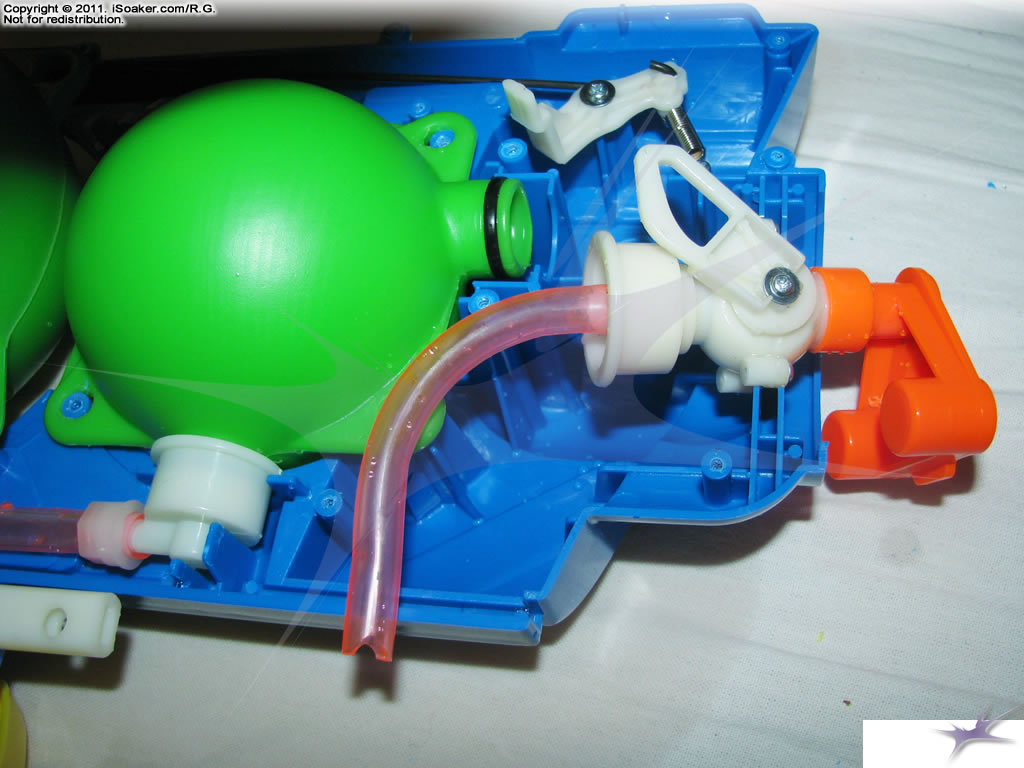

Internal PC-to-nozzle intake tube

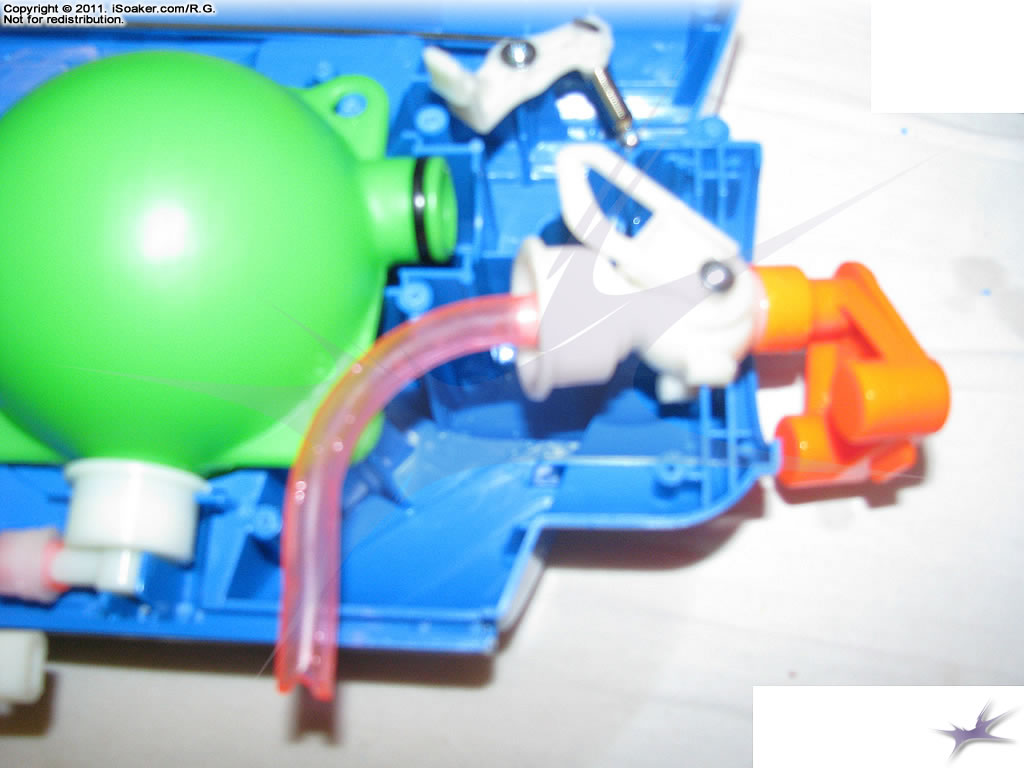

Internal PC-to-nozzle intake tube (pic 2). Opening of tube actually rests at the base of the PC
