Repairs Repair Guides - Nozzle Fast-Fill/Q.F.D. Port.:

Disclaimer: The following repair guide is provided for informational purposes. Not all these repairs have actually been tested here. iSoaker.com and its affiliates cannot and will not take any responsibility to any damages caused as a direct or indirect result of anything attempted. Use at your own risk/discretion.

By: M.C.Loud

This is a fix for the Super Soaker Super Charger Power Pak. This weapon was designed to be used with a Quick Fill Device (which I lost). It might work on other QFD super soakers, but I haven't tried. If you lose the QFD device you can still use this gun by adding a garden hose adapter directly to the gun.

  1. Cut 4-6 inches of hose on female end of garden hose.
  2. Soak hose in boiling water for a couple minutes.
  3. Stretch hose by inserting needle nose pliers into hose and opening. Alternate stretching and heating in water.

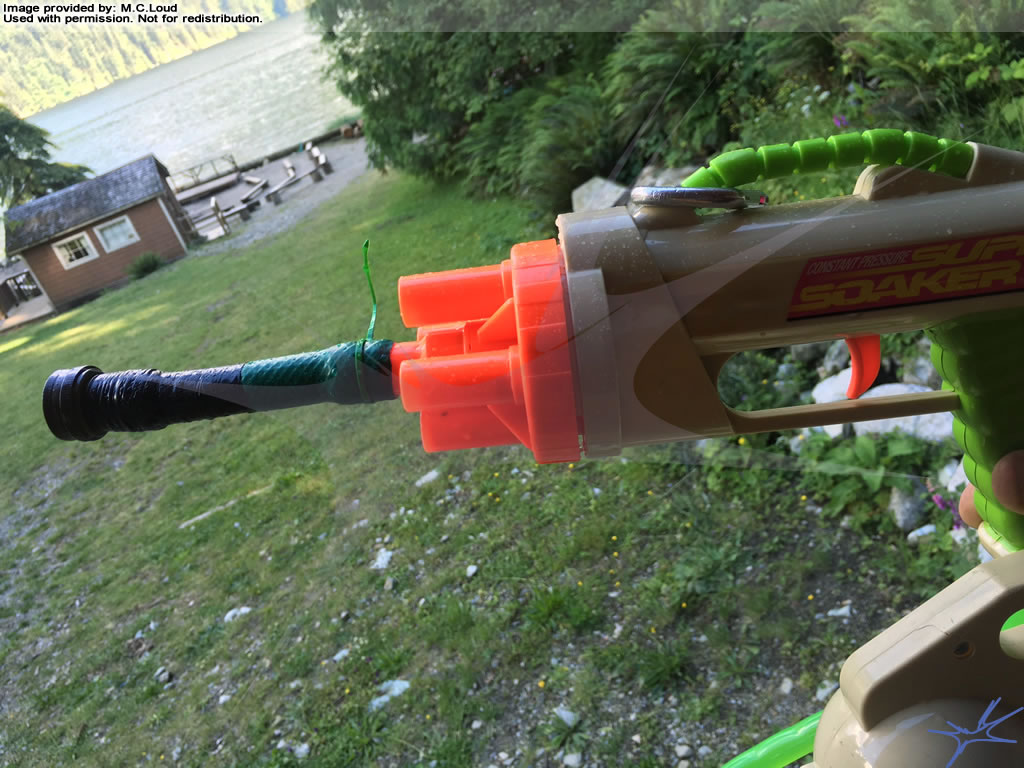

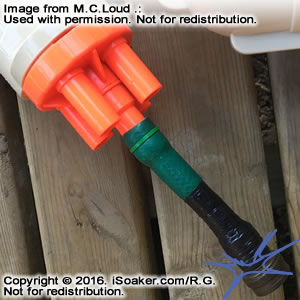

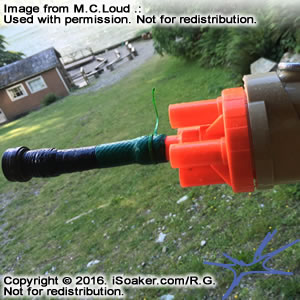

  4. Slide hose over the QFD and as far down as possible.
  5. Add a hose clamp or tight zap strap to prevent hose sliding off.



water_warriors_gargantua_box01_175water_warriors_gargantua_box01_175water_warriors_gargantua_box01_175

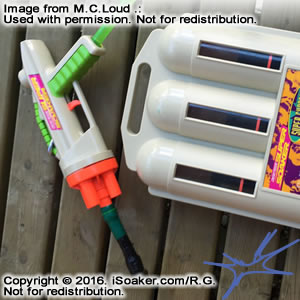

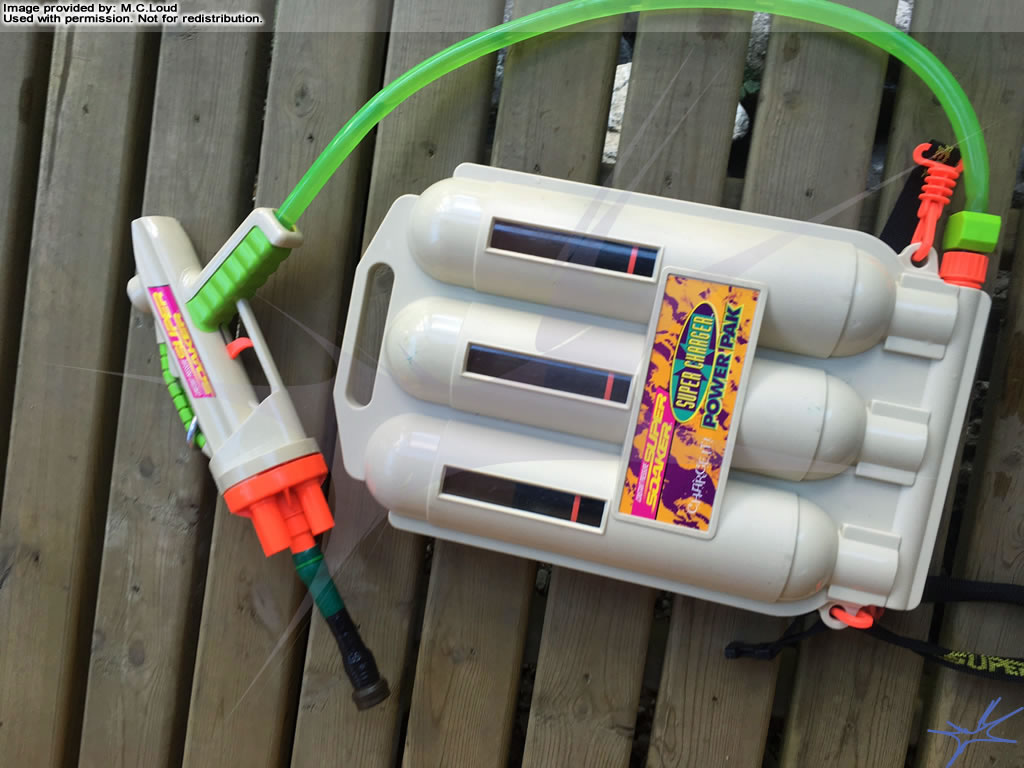

Now you can screw directly into a hose, and turn on the water to fill the backpack. It's a little slower, but works very well. It does not interfere when firing.

Posted: 20160709
