The Armoury Review :: Water Warriors Armor Dillo

.: Limited statistics measured at



Manufacturer: Buzz Bee Toys Inc.

Class:  Hose

  Item Number: 01280
  Copyright Date / Release Date: 2003 / 2004
  Availability: No Longer Made


Basic Statistics ::

  Weight: 0.00 g (0 oz.)
  Reservoir Volume: 0.00 mL (0 fl.oz.)
  Pressure Chamber Volume: N/A
  Pump Volume: N/A Ratings .:

Power: N/A

Range: 100

Encumbrance: N/A

Ergonomics: 75

Capacity: 5

Overall: 70

Blaster Dimensions :: N/A x N/A x N/A

Length x Width x Height

Version Colours .:



Pressure Chamber



1 ::

Green / Yellow
Grey / Purple / Orange

Nozzle Information: 1 (3 settings) .:


Range (level)

Range (45°)


iSoaker Output Rating

iSoaker Power Rating

Shot Time

Setting 1 ::

6.0 m (19.69')

7.0 m (22.97')





Setting 2 ::

7.0 m (22.97')

9.0 m (29.53')





Setting 3 ::

11.0 m (36.09')

12.0 m (39.37')






  • Most statistics are from models tested by; individual performance may vary; some models exhibit greater variability than others (i.e. output, range, colours, etc.)
  • Please reference if you use any information from any part of this website.

Own this product?

Submit a Review Online

Compare Products

Product Comparison Page

Search For Another?


More Water Blaster Images Water Blaster Videos Water Blaster Internal Pictures Uses QFD / Fast-Fill Device Blaster Inspector

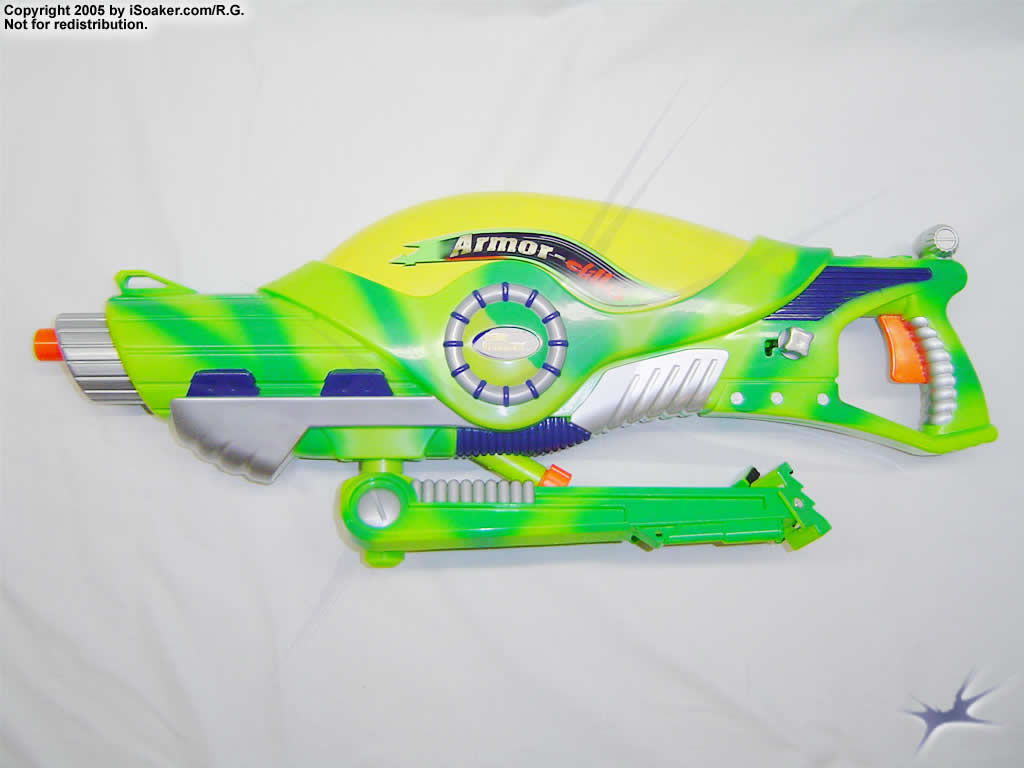

iS_waterwarriors_armordillo_01tbThe Water Warriors Armor-dillo is an interesting water weapon. It does not quite qualify as a soaker as the Water Warriors Armor-dillo is 100% hose-reliant. Unlike soakers such as the Super Soaker SC Power Pak and Super Soaker CPS Splashzooka that require a hose to fill, but function independantly, the Armor-dillo derives its water capacity and pressure purely from the hose it is attached to. As such, the power available to the Armor-dillo is also dependant on the water pressure a given hose can supply. For sake of argument, the Armor-dillo is a fancier hose nozzle attachment. However, it does offer some interesting features.

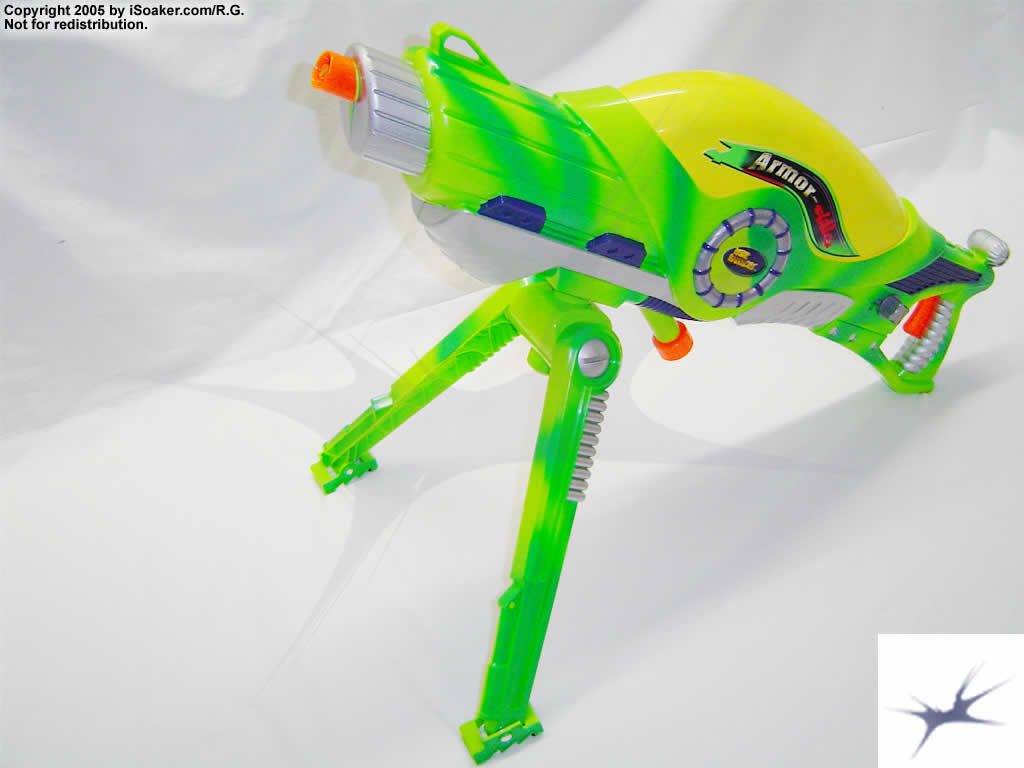

iS_waterwarriors_armordillo_11tbStyling aside, the Armor-dillo sports a collapsible bipod that tucks neatly beneath its body. The bipod legs snap into either up or down positions and can also swivel to some degree. The feet on the bipod can also adjust slightly to uneven terrain.

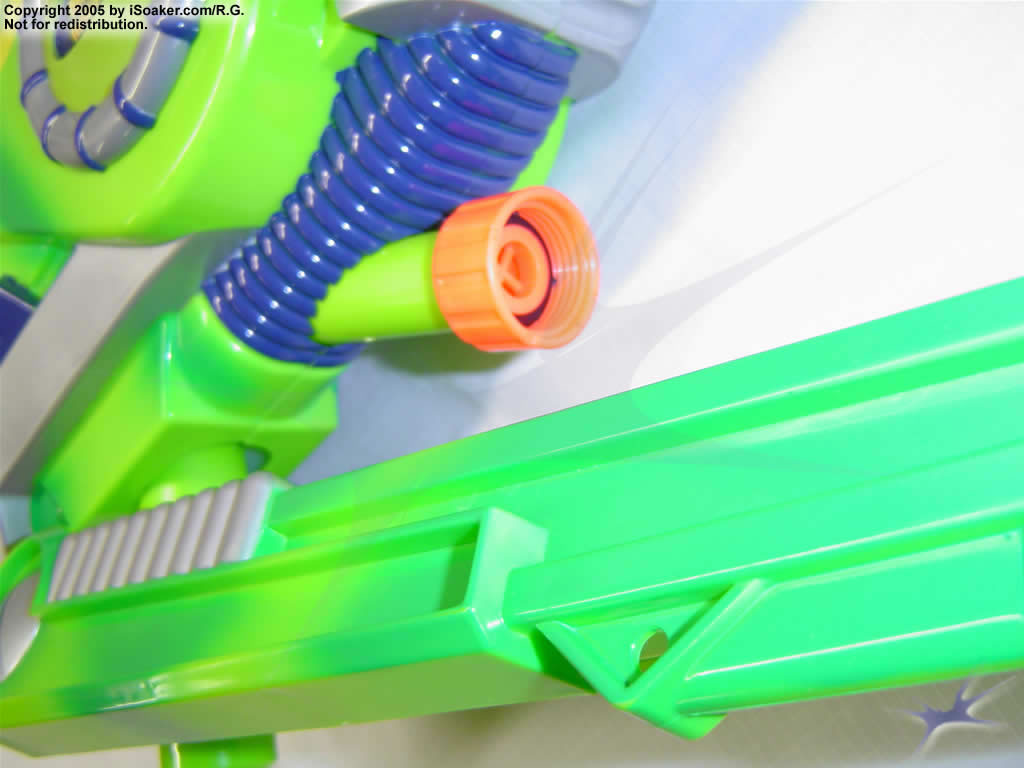

iS_waterwarriors_armordillo_10tbThe hose is attached to the input port at the base of the unit. This connection must be secured well, otherwise the pressure from a good strength hose will likely cause this area to leak or mist. Shots from the Armor-dillo are controlled by the rear-mounted trigger. It also features three spray settings that are controlled by a grey lever-knob near to the trigger. The forward two settings on the knob result in the stream taking on a spread pattern. However, when the knob is set to the last position, the Armor-dillo fires a non-spreading stream.

The advantage of using the Water Warriors Armor-dillo as opposed to just a standard hose attachment appears to be in a slight range improvement on stream setting. Testing here resulted in a 3m improvement in range when using the Armor-dillo compared to a standard garden nozzle attachment. As well, the Armor-dillo also looks more like a soaker, thus may be more acceptable for use in battles. Of course, having the power of a hose attachment means the Armor-dillo user need not worry about conserving water. However, he/she is limited by the reach of the hose.


Slight range improvement over tested garden attachment. Nice styling, easy to switch nozzle settings.


Completely hose dependant. Connection to hose a little tricky to fasten securely without water spraying or leaking from the attachment.
